Description
Antistatic flooring (ESD flooring) is specially engineered to dissipate electrostatic charges to a safe ground path, protecting sensitive electronic components and preventing ignition risks in explosive environments.
Types of Antistatic / ESD Flooring
- A. ESD Vinyl Flooring Tiles / Rolls
- Most common in electronics & cleanrooms
- High durability, easy maintenance

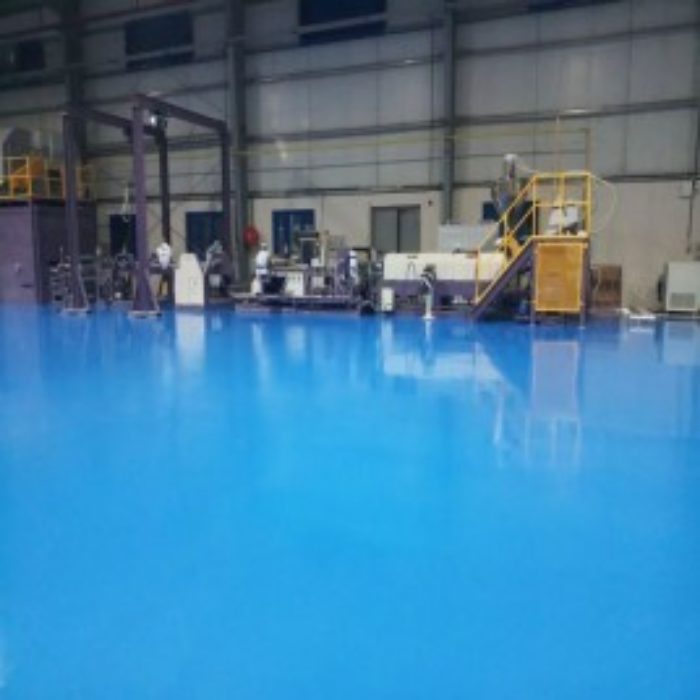

- B. ESD Epoxy Flooring
- Seamless surface
- Best for high-performance industrial & cleanroom areas
- C. ESD Rubber Flooring
- High chemical & mechanical resistance
- Suitable for heavy-duty applications
- D. ESD Carpet Tiles
- Used in offices, server rooms
Electrical Properties (IEC 61340-5-1 / ANSI/ESD S20.20 Compliant)
- Surface Resistance (Rs): 10⁶ to 10⁹ ohms (static-dissipative range)
- Point-to-Ground Resistance (Rg): 10⁶ to 10⁹ ohms
- Charge Generation: < 100 volts when walked on (meets S20.20 standard)
- Static Decay: < 0.5 seconds (from 5kV to 50V)
Physical / Mechanical Properties
For Vinyl ESD Tiles:
| Property | Typical Value |
|---|---|
| Thickness | 2 mm |
| Size | 600×600 mm / 500×500 mm |
| Density | 1.4–1.6 g/cm³ |
| Tensile Strength | > 12 MPa |
| Dimensional Stability | < 0.4% |
| Wear Layer | 0.5–0.7 mm |
| Fire Rating | Class 1 / Class Bfl-s1 |
For ESD Epoxy:
| Property | Typical Value |
|---|---|
| Thickness | 1.5 / 2 mm |
| Shore Hardness | 80–85 D |
| Compressive Strength | 60–80 MPa |
| Bond Strength | > 1.5 MPa |
| Surface Finish | Glossy / Matt |
Installation System
A. For Vinyl Tiles / Rolls
- Conductive adhesive / SR-505
- Copper grounding strip (every 20–30 sq.m)
- Grounding pit connection
- Seam welding optional
B. For Epoxy
- Primer
- Copper tape grid
- ESD epoxy base coat
- ESD top coat
Key Features
- Static-dissipative surface
- Protects electronic components (ESD safe)
- Seamless cleaning (cleanroom compatible)
- Chemical and abrasion resistant
- Anti-slip finish
- Long life: 8–15 years depending on type
Cleanroom Compatibility
- Suitable for ISO Class 5 to Class 9 cleanrooms
- Low particle generation
- Solvent & IPA-resistant surface
Applications
- Electronics assembly & SMT lines
- PCB manufacturing
- Semiconductor cleanrooms
- Pharmaceutical & biotechnology labs
- Aerospace manufacturing
- Server rooms & data centers
- Industrial control rooms
- Explosive or flammable environments (ATEX areas)
Standard Colors
- Light grey
- Blue
- Green
(High-visibility grids optional depending on manufacturer)
